 My 8k8 blue ee101

View previous topic View next topic Go down
Go to page : 1, 2  Next
AuthorMessage
Gafferz
New Member
New Member


Posts : 24
Reputation : 0
Join date : 2013-02-01

PostSubject: My 8k8 blue ee101   Wed Mar 27, 2013 12:44 pm

Well lads been on this for a while now so said i might aswell start a project thread.I bought my corolla last november.
Its a 96 brilliant blue pearl xli and i'm the third owner on it(the previous owner was an elderly lady and had the car since 2000).
Anyway here's some pics of when i got it.....
[img][/img]

[/img]


First thing i done was change the front seats for a set of ae101 seats,had some levin mats there aswell so i
threw them in to along with a trd gearknob.
[img][/img]
[img]

I picked up a rough se-limited for buttons,it had the hvac,electric windows and mirrors ect....




So i got to stripping out the se-limited.No pics with the dash out but you get the idea.





Then on to the blue bullet Smile






Old carpet was looking pretty sorry for itself.


The rear doors had to come off and be drilled for the rear loom for the electrics.




Picked up 20v clocks and a broadway mirror.



Two looms out,you can see the difference.



And more stripping.






Starting to go back together.



Under the back seat had a bit of surface rust prob where someone spilt a drink so i sanded it down and
gave it a lick of paint.Then gave the whole interior a good wash.


Roolcloth,doorcards and carpet cleaned and back in.




Next was the interior trim and seatbelts.


The 4efe body and engine loom was completly different to the 5afe one so i had to rewire the 16 pin 4efe ecu
plug and interior-to-body plugs.








What a sick mess lol Laughing


My rewired ecu plug.



My old speakers were knackered but luckily i had a set of alpines lying around so i went and threw them in.






Got a new head unit to compliment my new speakers.


Everything all wired up and back together.










Gave it a quick polish,it came up pretty good for an hours work.






Thats where it stands at the moment,next is to wetvac the whole interior and clean up the plastics.
More to come soon and thanks for looking. Very Happy


Last edited by Gafferz on Fri Apr 26, 2013 7:05 am; edited 1 time in total
Back to top Go down
gold94corolla
Site Administrator
Site Administrator
avatar

Posts : 5263
Reputation : 181
Join date : 2011-04-29
Age : 30
Location : Maryland, USA

PostSubject: Re: My 8k8 blue ee101   Thu Mar 28, 2013 12:42 am

DANG that's clean! I love the interior and that classy exterior color Smile

_________________

Back to top Go down
John-117
Member
Member
avatar

Posts : 117
Reputation : 5
Join date : 2013-02-14
Age : 27
Location : Montreal,Quebec, Canada

PostSubject: Re: My 8k8 blue ee101   Thu Mar 28, 2013 12:49 am

Great job. But what about the rear garnish and levin seat? Maybe a miss a thing.
Back to top Go down
Gafferz
New Member
New Member


Posts : 24
Reputation : 0
Join date : 2013-02-01

PostSubject: Re: My 8k8 blue ee101   Thu Mar 28, 2013 2:11 am

Rear garnish wont be going on till I have the money to get the bumper sprayed,also have jap front wings, sprinter grill and gt fx front bumper to go on.As for the seats I'm undecided atm but I will prob end up throwing two recaros into the front.
Thanks for the comments lads im in the process of cleaning up the interior atm.
Back to top Go down
miib14
Site Administrator
Site Administrator
avatar

Posts : 7346
Reputation : 158
Join date : 2011-04-27
Age : 27
Location : Manchester

PostSubject: Re: My 8k8 blue ee101   Thu Mar 28, 2013 7:24 am

very nice work indeeed,

loving the attention to detail Approve!

cant wait to see more pics..

you should up a build thread for the levin tooo

_________________


★ 1993 Toyota Corolla Saloon  ★
トヨタ 花
♥ AE-202 Owner ♥

It's all about N/A Power.....
198 bhp and 148 lbft

Back to top Go down
http://www.ae101ownersclub.com
Gafferz
New Member
New Member


Posts : 24
Reputation : 0
Join date : 2013-02-01

PostSubject: Re: My 8k8 blue ee101   Thu Mar 28, 2013 9:06 am

miib14 wrote:
very nice work indeeed,

loving the attention to detail Approve!

cant wait to see more pics..

you should up a build thread for the levin tooo

I would but its kinda part of this build if you know what I mean Wink
Back to top Go down
miib14
Site Administrator
Site Administrator
avatar

Posts : 7346
Reputation : 158
Join date : 2011-04-27
Age : 27
Location : Manchester

PostSubject: Re: My 8k8 blue ee101   Thu Mar 28, 2013 11:08 am

4age 20v going into this then?

_________________


★ 1993 Toyota Corolla Saloon  ★
トヨタ 花
♥ AE-202 Owner ♥

It's all about N/A Power.....
198 bhp and 148 lbft

Back to top Go down
http://www.ae101ownersclub.com
Gafferz
New Member
New Member


Posts : 24
Reputation : 0
Join date : 2013-02-01

PostSubject: Re: My 8k8 blue ee101   Thu Mar 28, 2013 1:03 pm

Yea man then prob 4agte next year depending on funds.Btw love your 3sge corolla lots of work there,fair play to you. Approve!
Back to top Go down
miib14
Site Administrator
Site Administrator
avatar

Posts : 7346
Reputation : 158
Join date : 2011-04-27
Age : 27
Location : Manchester

PostSubject: Re: My 8k8 blue ee101   Thu Mar 28, 2013 7:18 pm

thanks man Approve!

_________________


★ 1993 Toyota Corolla Saloon  ★
トヨタ 花
♥ AE-202 Owner ♥

It's all about N/A Power.....
198 bhp and 148 lbft

Back to top Go down
http://www.ae101ownersclub.com
mobiless2
New Member
New Member


Posts : 11
Reputation : 0
Join date : 2011-12-18

PostSubject: Re: My 8k8 blue ee101   Fri Mar 29, 2013 1:03 pm

Great Job Swapping everything over! Paint Looks Great!
Back to top Go down
Gafferz
New Member
New Member


Posts : 24
Reputation : 0
Join date : 2013-02-01

PostSubject: Re: My 8k8 blue ee101   Mon Apr 01, 2013 1:48 am

Just a small update.Cleaned up the interior a little during the week,will get up more pics next when its cleaned properly and have my new speakers installed under the parcel shelf.


Back to top Go down
miib14
Site Administrator
Site Administrator
avatar

Posts : 7346
Reputation : 158
Join date : 2011-04-27
Age : 27
Location : Manchester

PostSubject: Re: My 8k8 blue ee101   Mon Apr 01, 2013 3:36 am

looking good

_________________


★ 1993 Toyota Corolla Saloon  ★
トヨタ 花
♥ AE-202 Owner ♥

It's all about N/A Power.....
198 bhp and 148 lbft

Back to top Go down
http://www.ae101ownersclub.com
SHEHROZE ARAIN
Pakistan Rep
Pakistan Rep
avatar

Posts : 1802
Reputation : 58
Join date : 2011-12-08
Age : 23
Location : HYDERABAD

PostSubject: Re: My 8k8 blue ee101   Wed Apr 03, 2013 6:10 am

looking good bro alot of hard work put into it..ps ur car has a great colour for waxing.....

_________________
Back to top Go down
Gafferz
New Member
New Member


Posts : 24
Reputation : 0
Join date : 2013-02-01

PostSubject: Re: My 8k8 blue ee101   Thu Apr 04, 2013 8:50 am

Thanks lads,yea she comes up very well with a wax only thing is its a hard colour to keep clean.
Back to top Go down
Robbiemulc17
Elite Member
Elite Member
avatar

Posts : 234
Reputation : 9
Join date : 2012-08-16
Location : Ireland

PostSubject: Re: My 8k8 blue ee101   Sun Apr 21, 2013 6:44 am

looks the job lad Smile wouldn't mind the rear garnish Razz

_________________
Back to top Go down
mobiless2
New Member
New Member


Posts : 11
Reputation : 0
Join date : 2011-12-18

PostSubject: Re: My 8k8 blue ee101   Sun Apr 21, 2013 10:34 am

Nice Job!
Back to top Go down
NikkiCorolla
New Member
New Member
avatar

Posts : 20
Reputation : 1
Join date : 2013-01-22
Age : 23
Location : Merseyside

PostSubject: Re: My 8k8 blue ee101   Sun Apr 21, 2013 11:55 pm

Nice work mate, looks really good.

_________________
Back to top Go down
BRIDGY
Super Member
Super Member
avatar

Posts : 968
Reputation : 43
Join date : 2012-01-02
Age : 28

PostSubject: Re: My 8k8 blue ee101   Mon Apr 22, 2013 5:21 am

Looks alot better, Are you thinking of changing the rims and lowering. Will look even better Very Happy

_________________

                        3SGTE AE101 & OCTAVIA TDI OWNER
Back to top Go down
Gafferz
New Member
New Member


Posts : 24
Reputation : 0
Join date : 2013-02-01

PostSubject: Re: My 8k8 blue ee101   Fri Apr 26, 2013 7:08 am

Little bit more done since last update.I fitted levin rear axel including shocks,discs,calipers,arms,hubs,anti-roll bar ect...
I also fitted a set of rsr lowering springs front and back and trd front strutbrace.
Anyway here's some pics.

Levin rear axel out.



Stripped down the rear of the corolla.




Fitted the lowering springs.



Levin anti-roll bar vs the corolla one.



Then done the front springs and put it back together.







Fitted the trd strutbrace,didnt drill out the holes for the rear bolts yet as i didnt have a holesaw that would fit.


And as it sits now.
Back to top Go down
miib14
Site Administrator
Site Administrator
avatar

Posts : 7346
Reputation : 158
Join date : 2011-04-27
Age : 27
Location : Manchester

PostSubject: Re: My 8k8 blue ee101   Fri Apr 26, 2013 7:15 am

nice work mate, i really want a trd brace now

_________________


★ 1993 Toyota Corolla Saloon  ★
トヨタ 花
♥ AE-202 Owner ♥

It's all about N/A Power.....
198 bhp and 148 lbft

Back to top Go down
http://www.ae101ownersclub.com
Gafferz
New Member
New Member


Posts : 24
Reputation : 0
Join date : 2013-02-01

PostSubject: Re: My 8k8 blue ee101   Fri Apr 26, 2013 7:20 am

miib14 wrote:
nice work mate, i really want a trd brace now

Thanks man.Mine was pretty sorry looking when i got it but i stripped it down and resprayed it ford grey.
Btw what skirts will fit my car or where could i get genuine bz touring skirts?
Back to top Go down
Gafferz
New Member
New Member


Posts : 24
Reputation : 0
Join date : 2013-02-01

PostSubject: Re: My 8k8 blue ee101   Thu Jan 30, 2014 8:33 am

Ok its been a while since i've been near this so i think its time for a bit of an update.First things first,i got a few small bits.

Got some levin wheels and new tires along with a set of moulded mudflaps which i sprayed matt black.


Facelift rear lights.


And corolla xc grill.


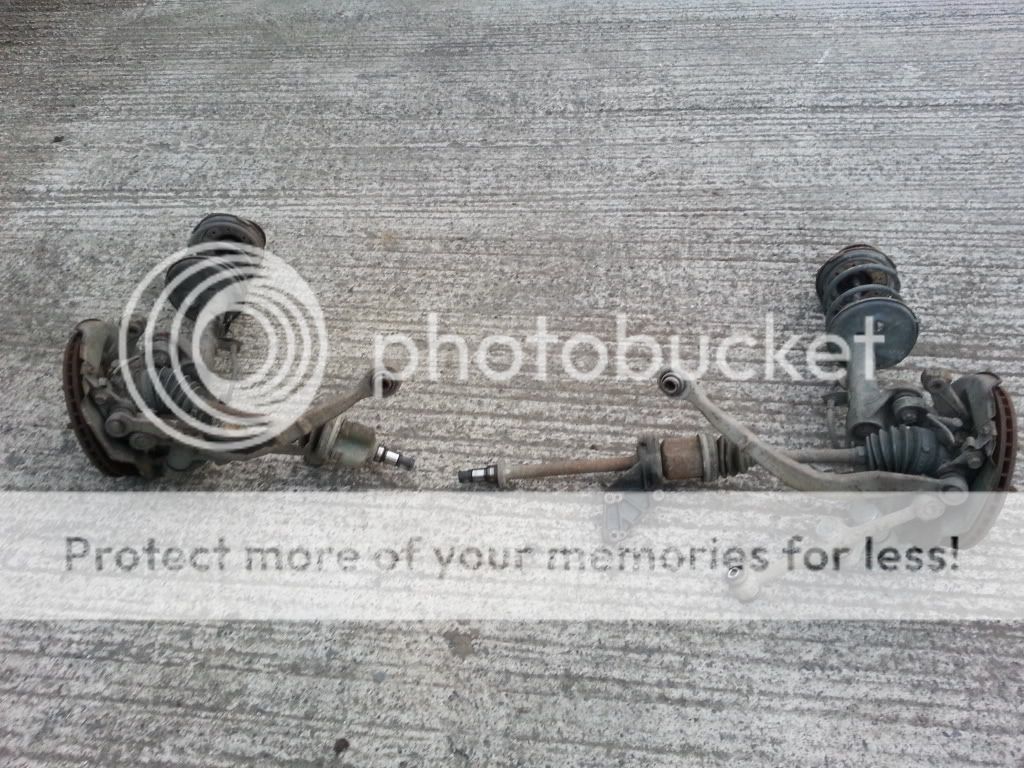

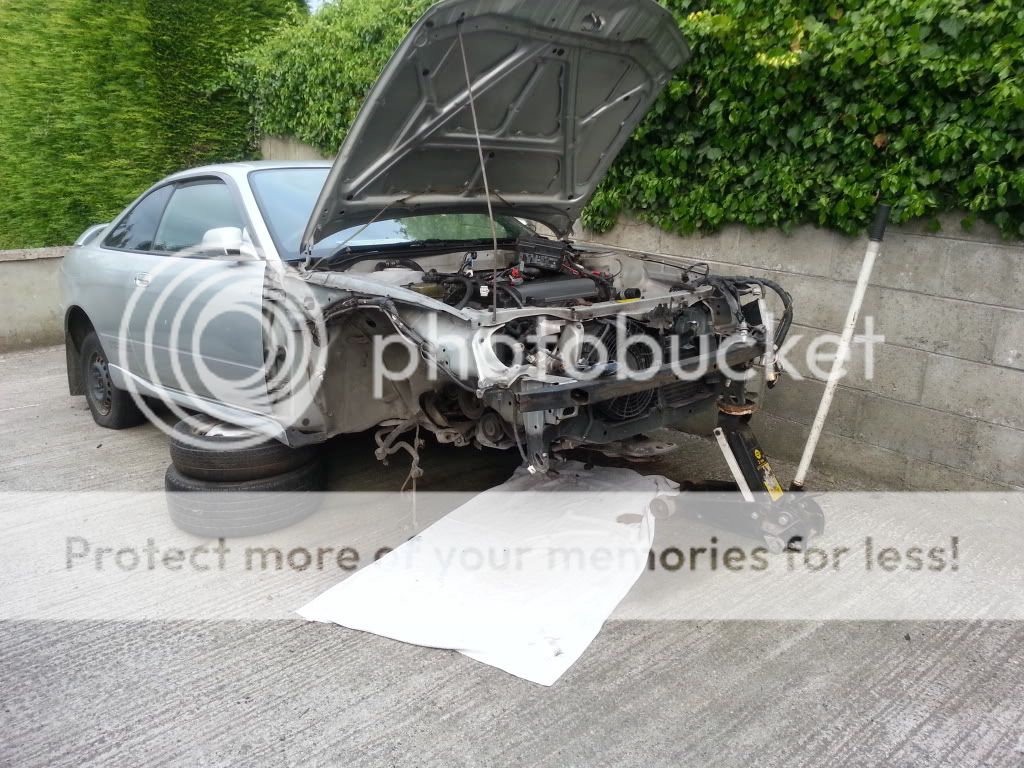

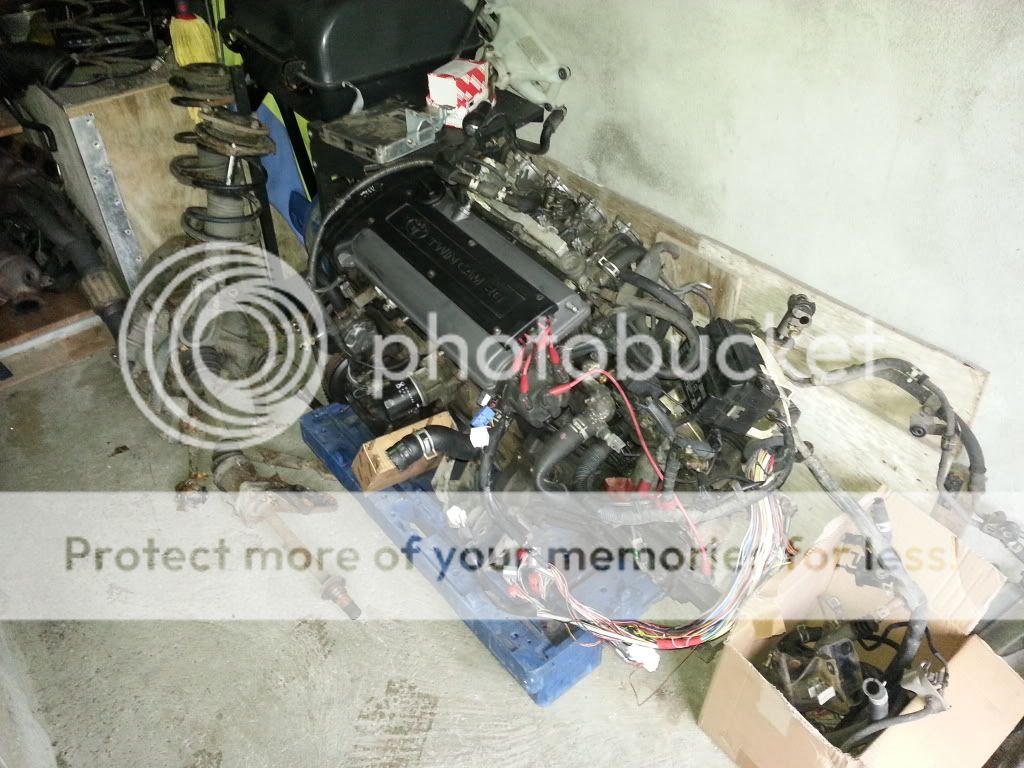

After that i started stripping down the doner car.So i got out the engine,superstrut ect...







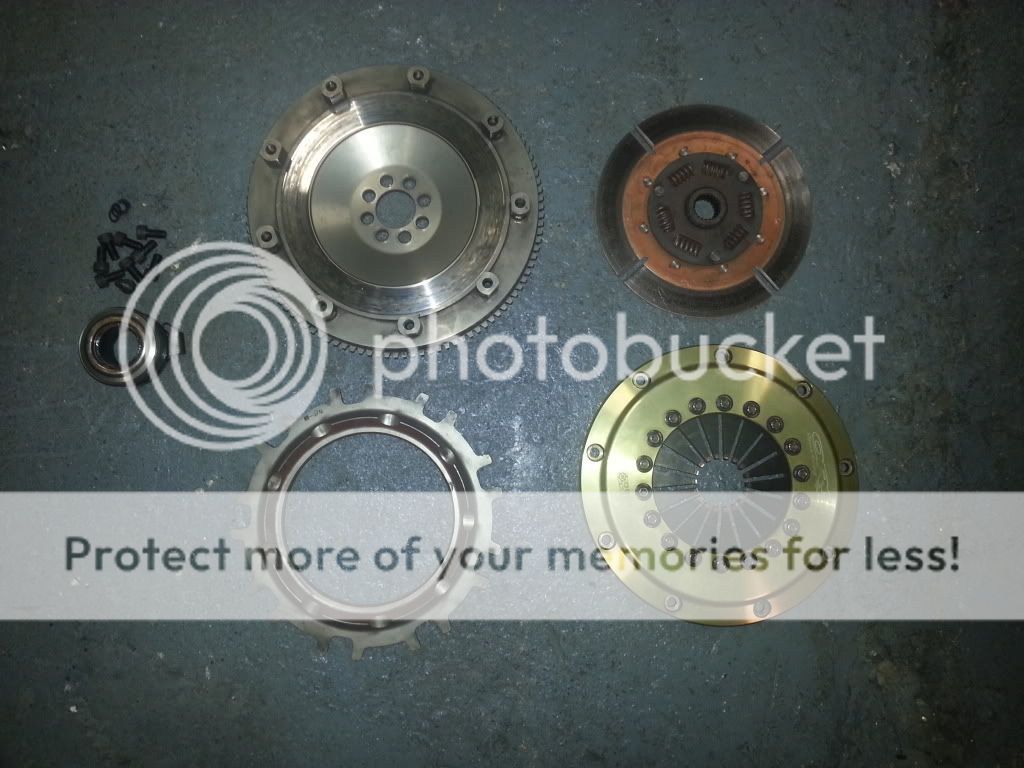

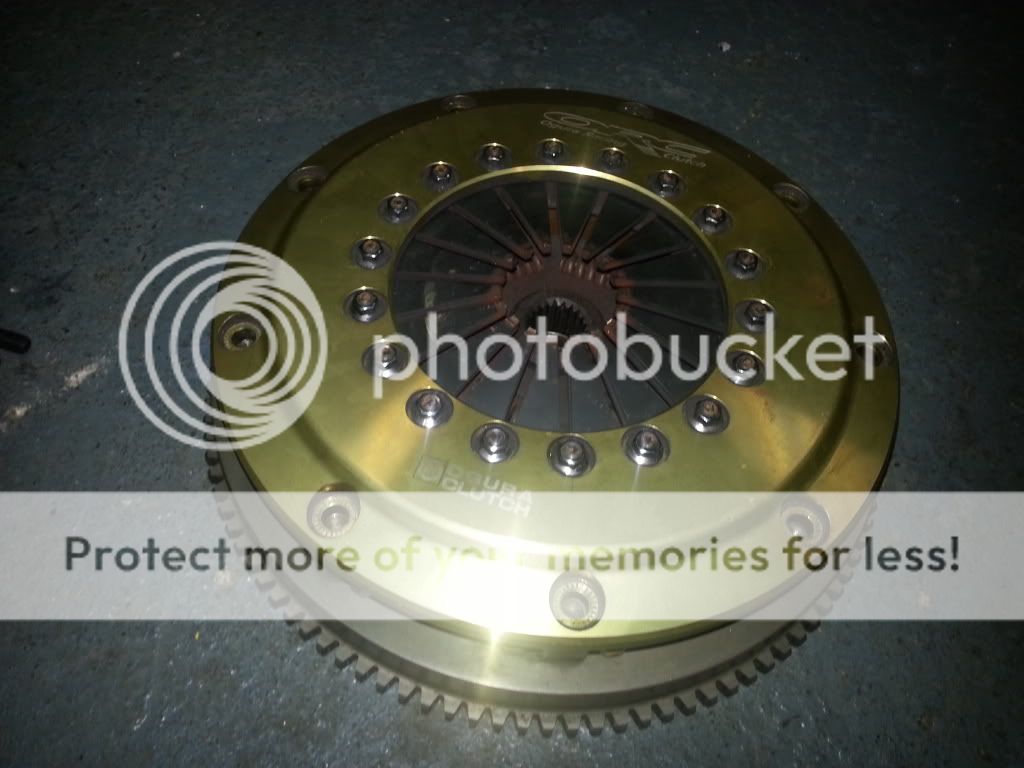

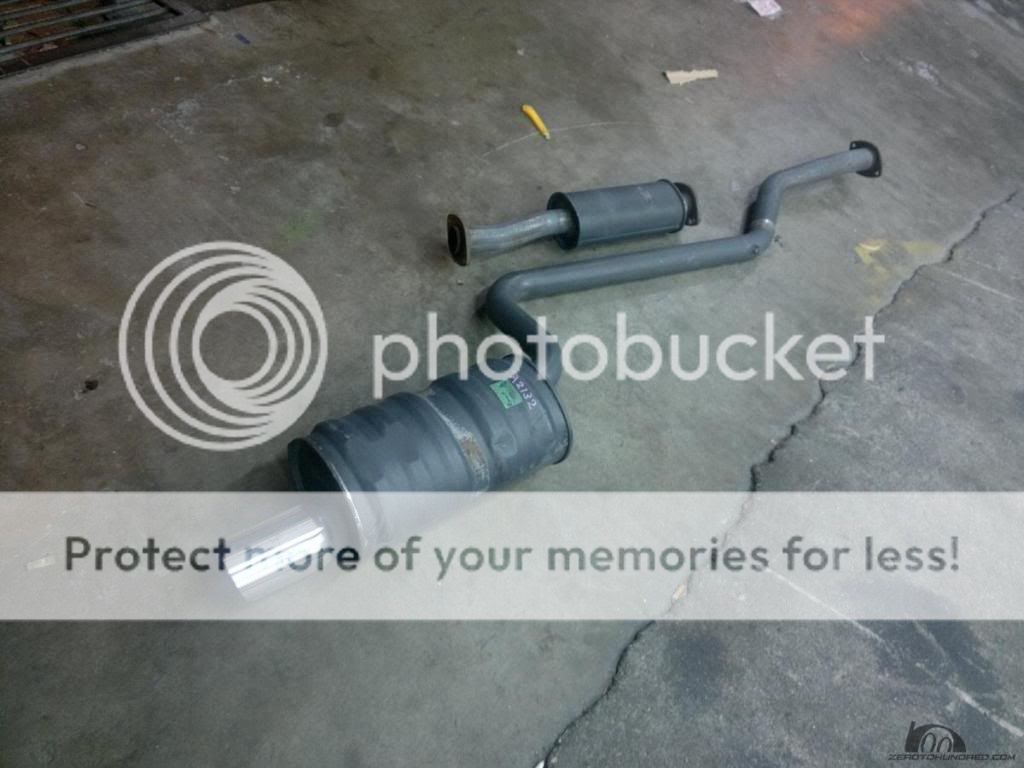

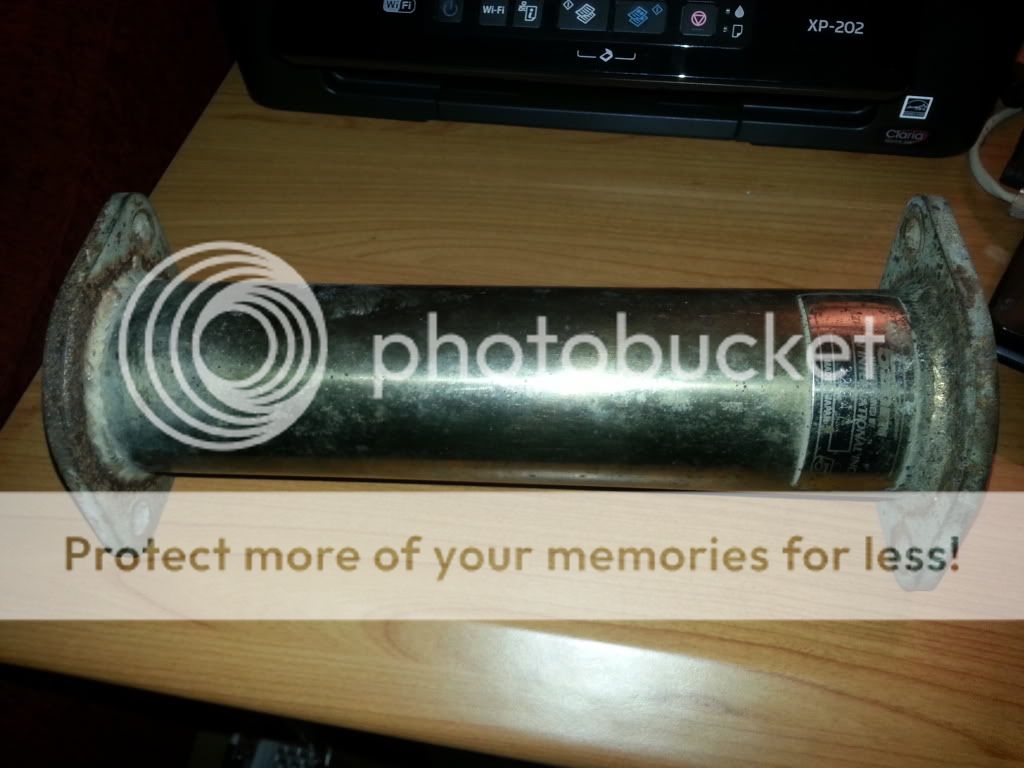

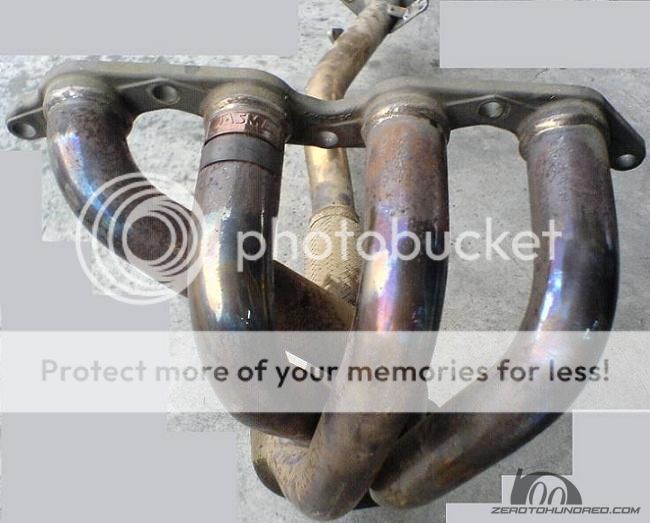

So i left it for a while and just started collecting some goodies Very Happy





[/u

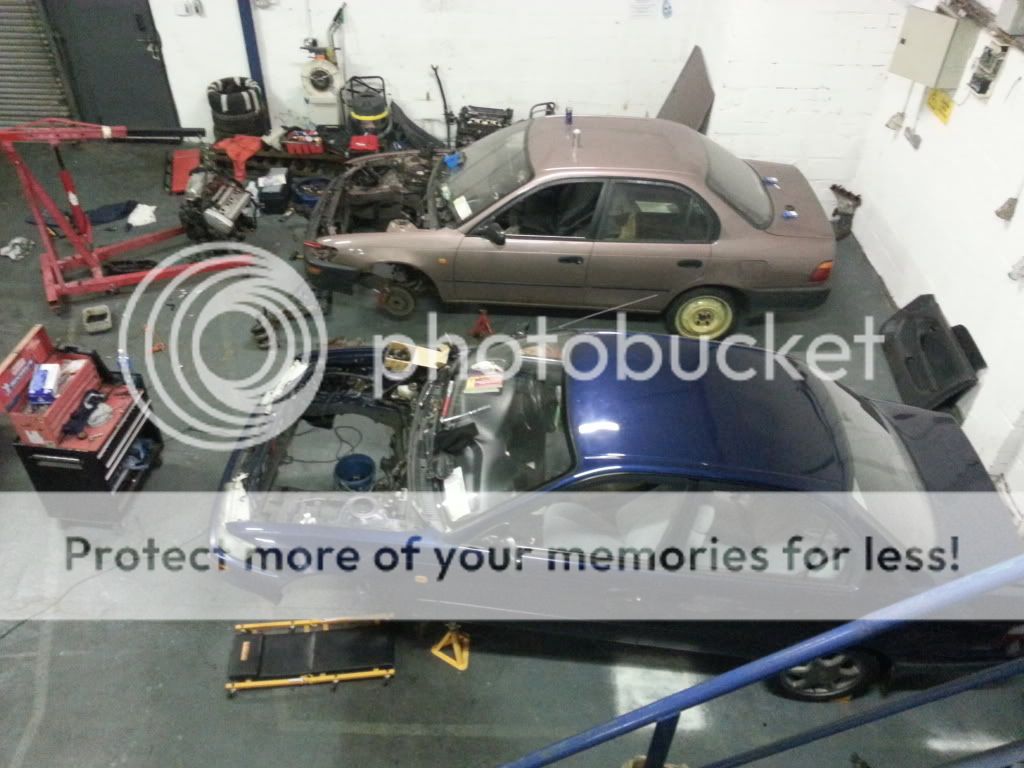

About 2 weeks ago i started working on the conversion in my spare time.

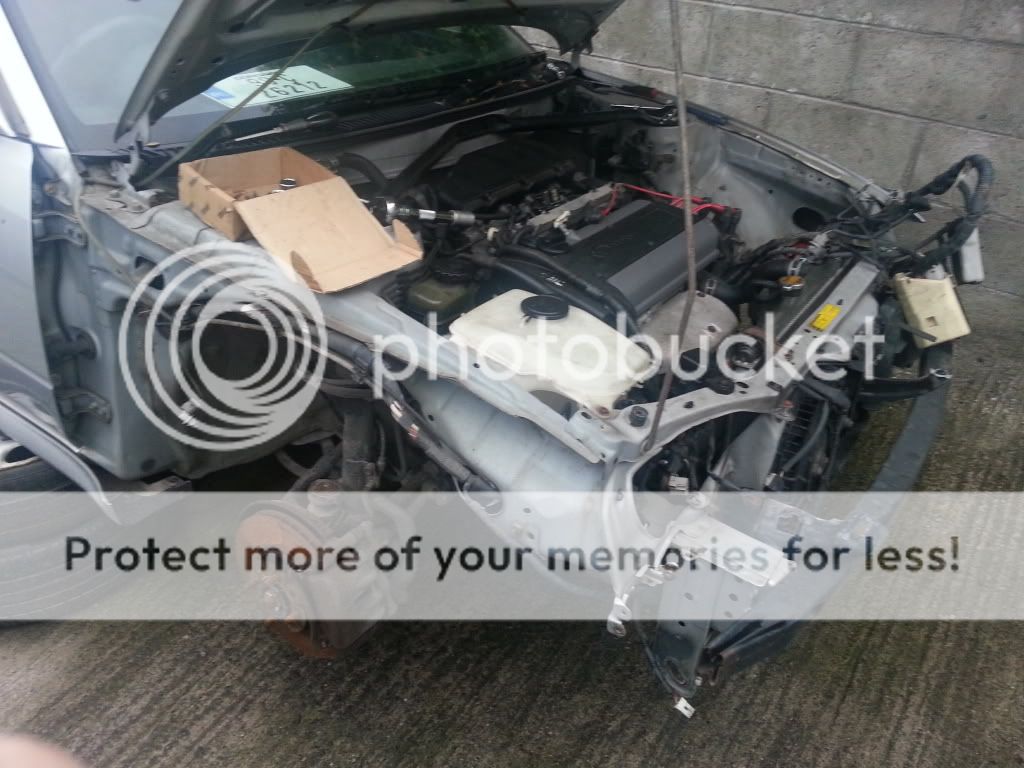

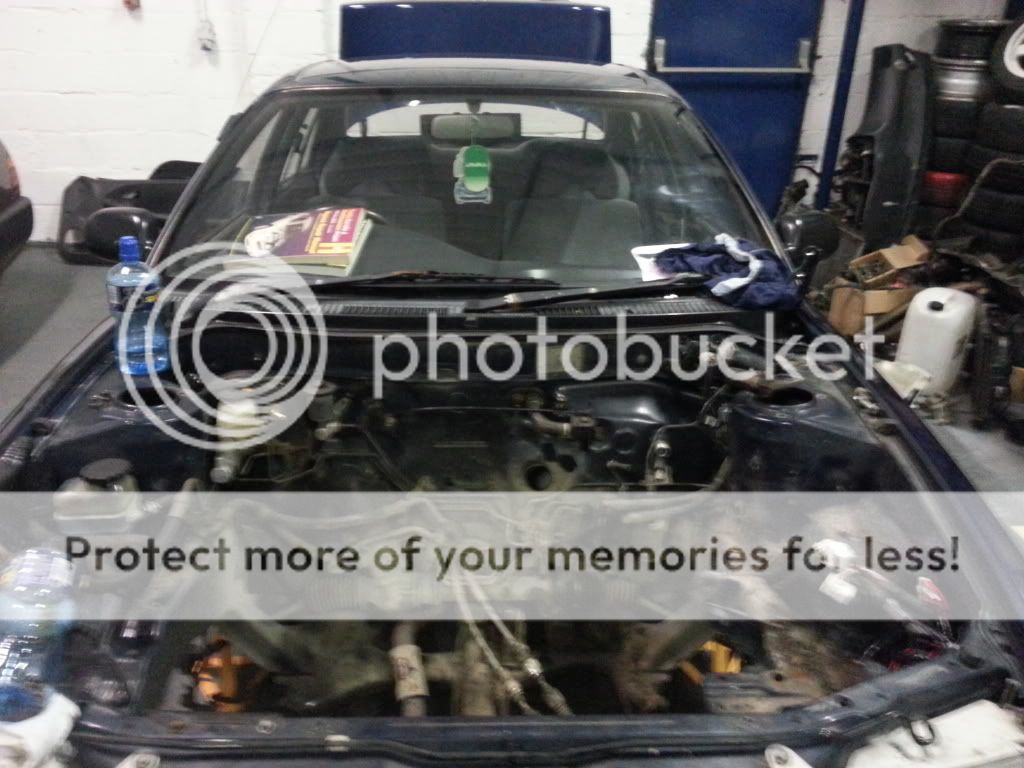

So the first thing i done was get the engine and suspension out.



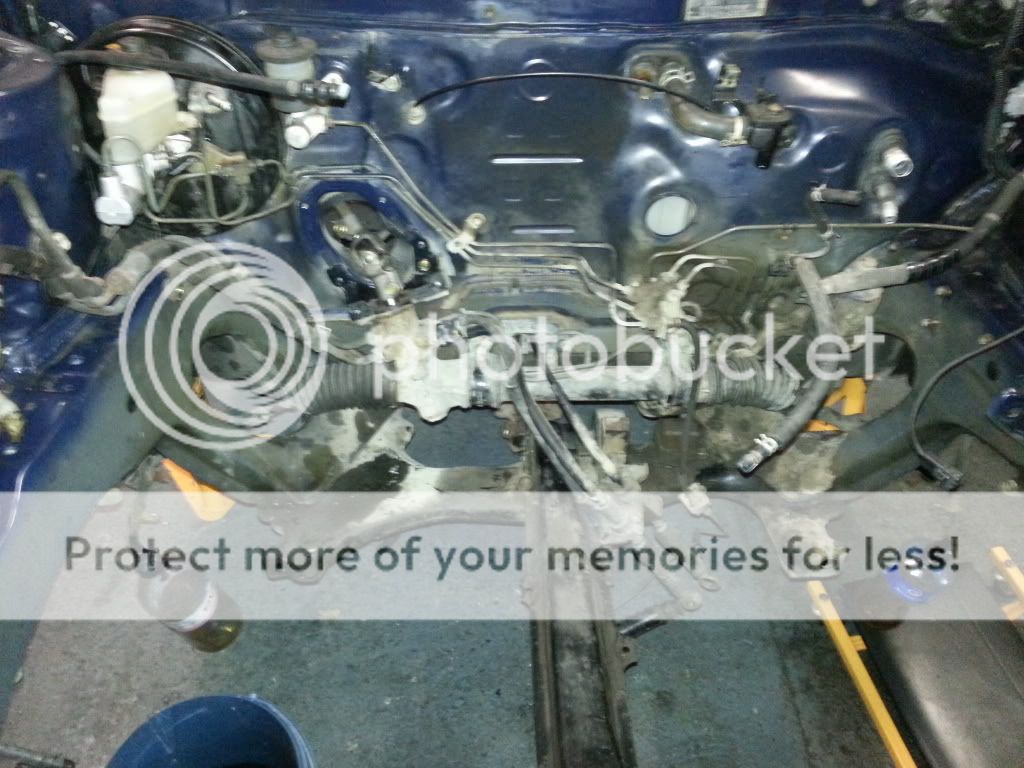

Then i started stripping the bay out and first to go was the brake servo.
The servo on the corolla only has one vacuum whereas the levin has two.
This is prob to keep vacuum on both sides of the of the itb's so there won't
be an imbalance and i believe on the 20v corolla's its tee'd off at the servo.

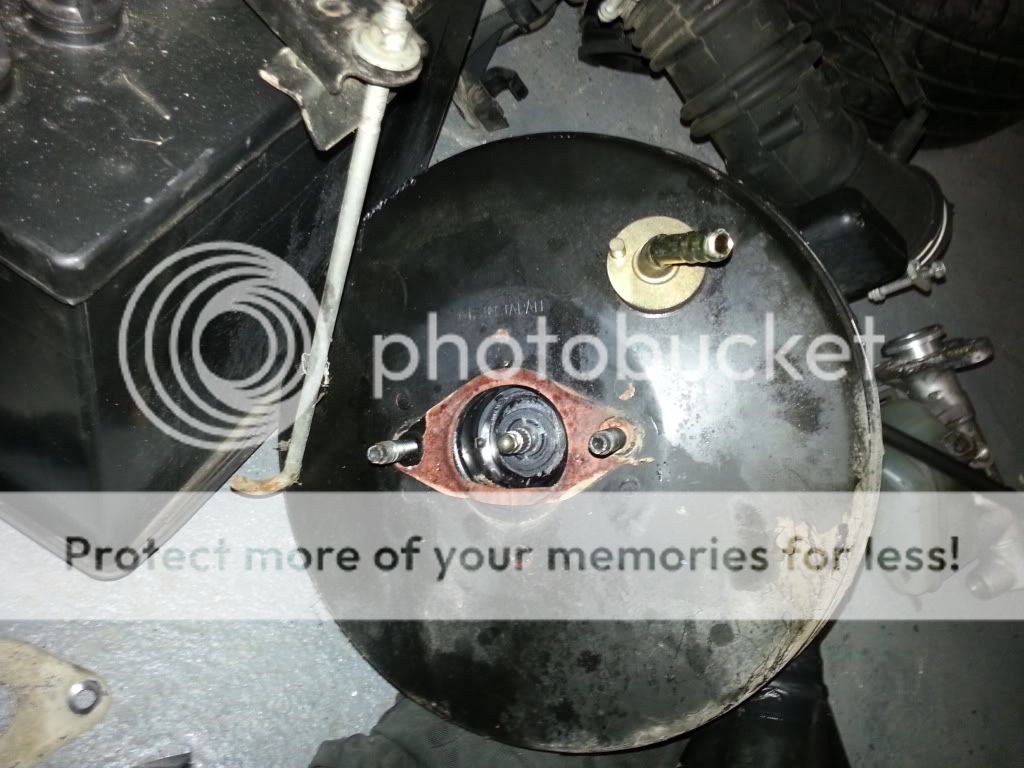

Anyway here is the corolla servo.


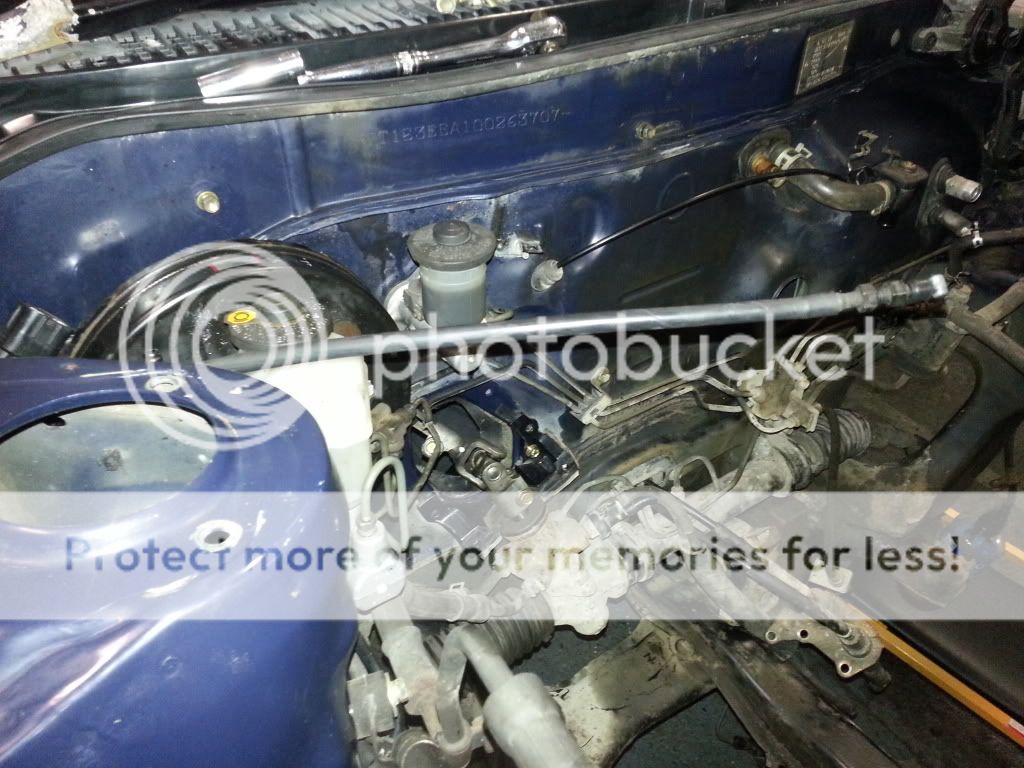

And here is the levin servo fitted.


When that was done i changed the the power steering rack.I done this because to run the blacktop pas pump
you will need custom lines if you chose to retain the corolla rack.Just a quick note,you don't have to change the rack to use super strut afaik.I believe its just tie rods and track rod ends that need changing.

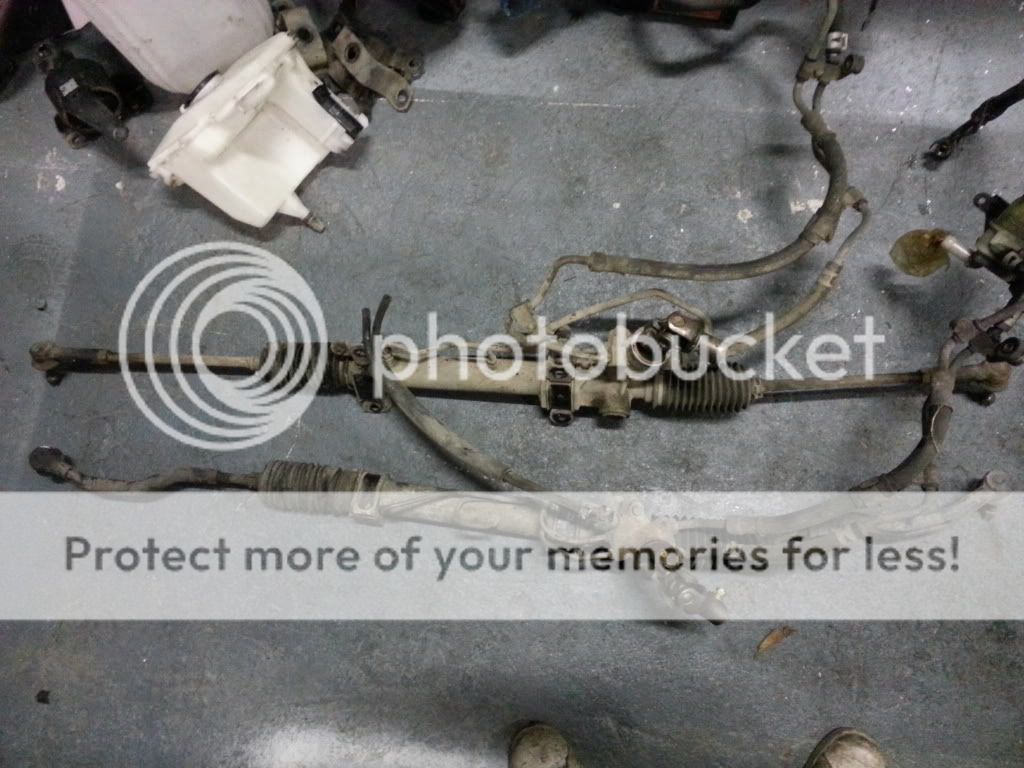

Corolla on the top and levin on bottom.



Since the blacktop uses itb's the throttle cable is much shorter so that had to be changed aswell.


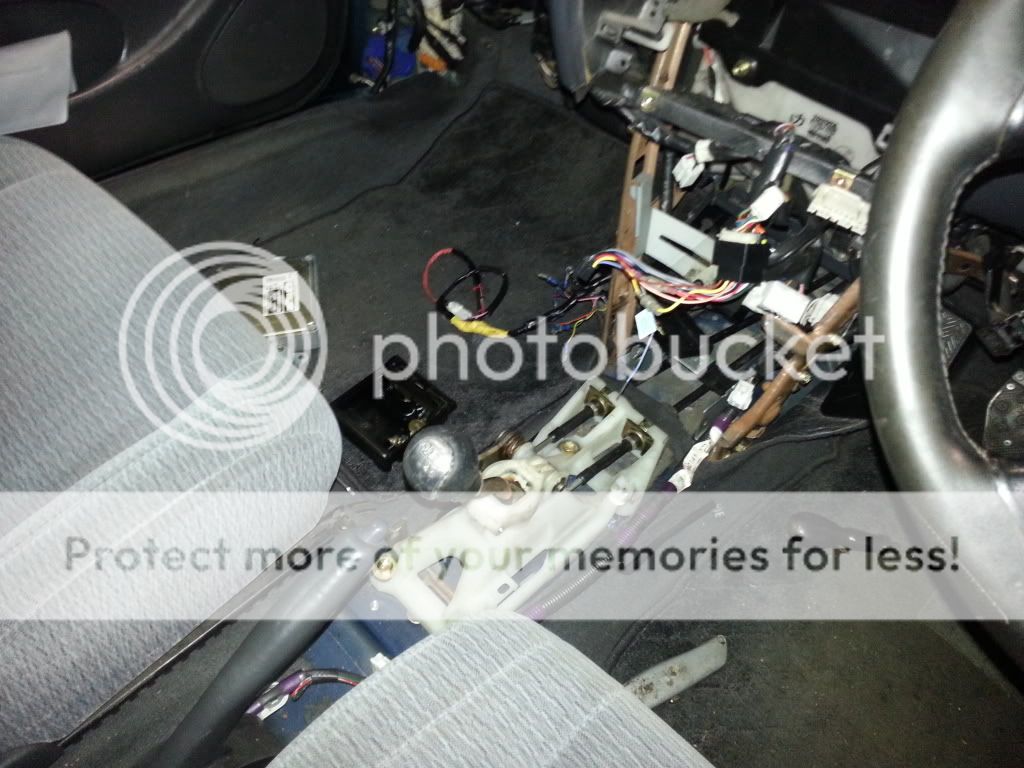

I was going to be using the c160 6 speed aswell so i had to change the shifter and linkages.



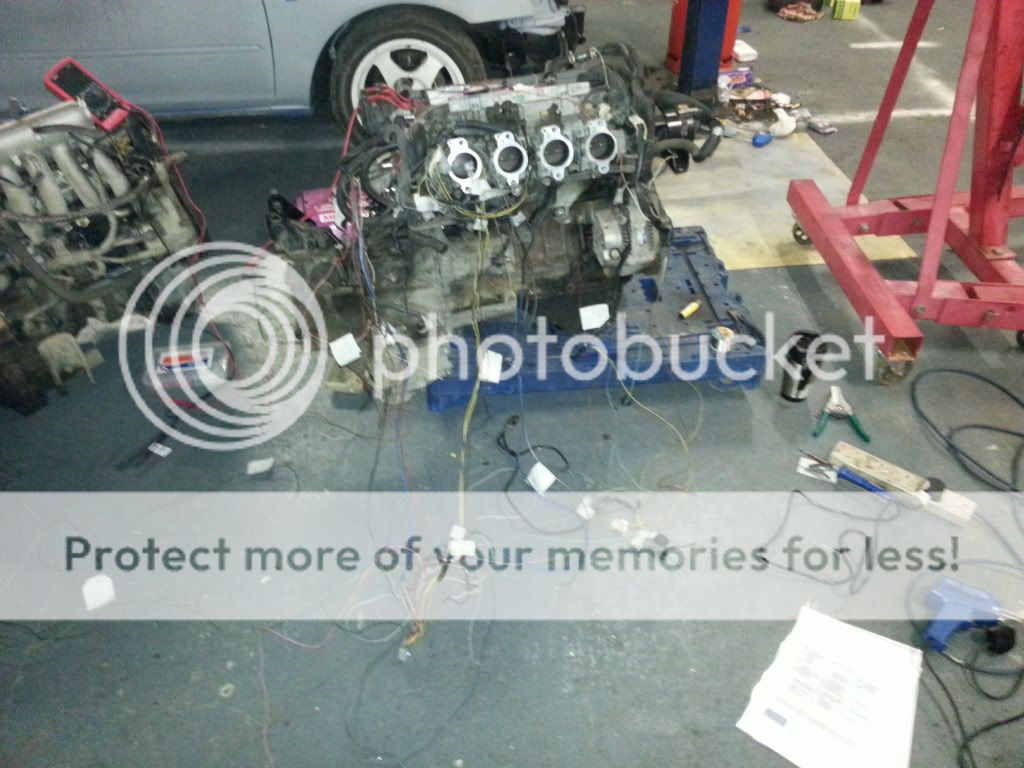

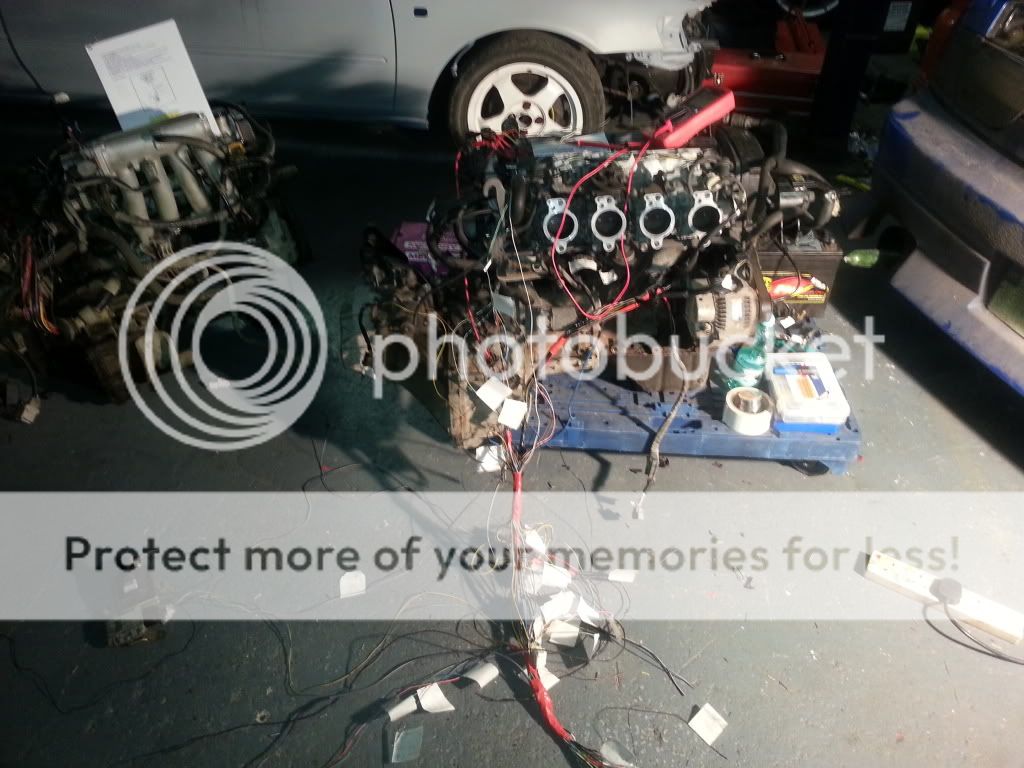

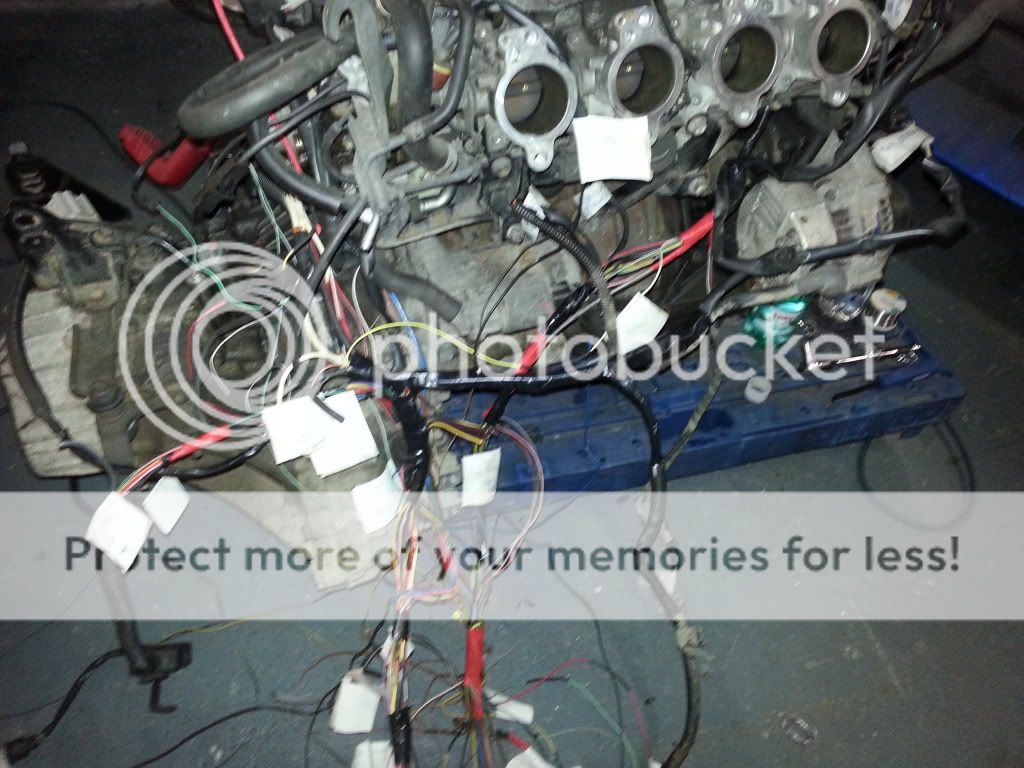

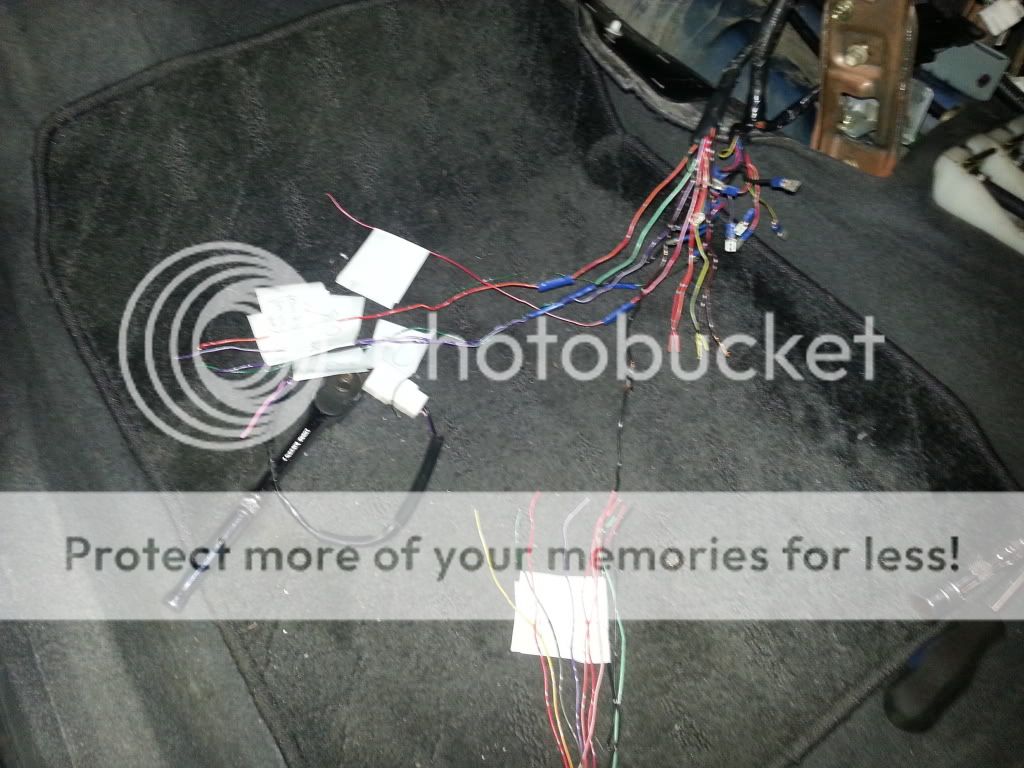

Got started on my wiring,basically merging the body part of the 4efe loom to
the engine/ecu part of the 4age loom.




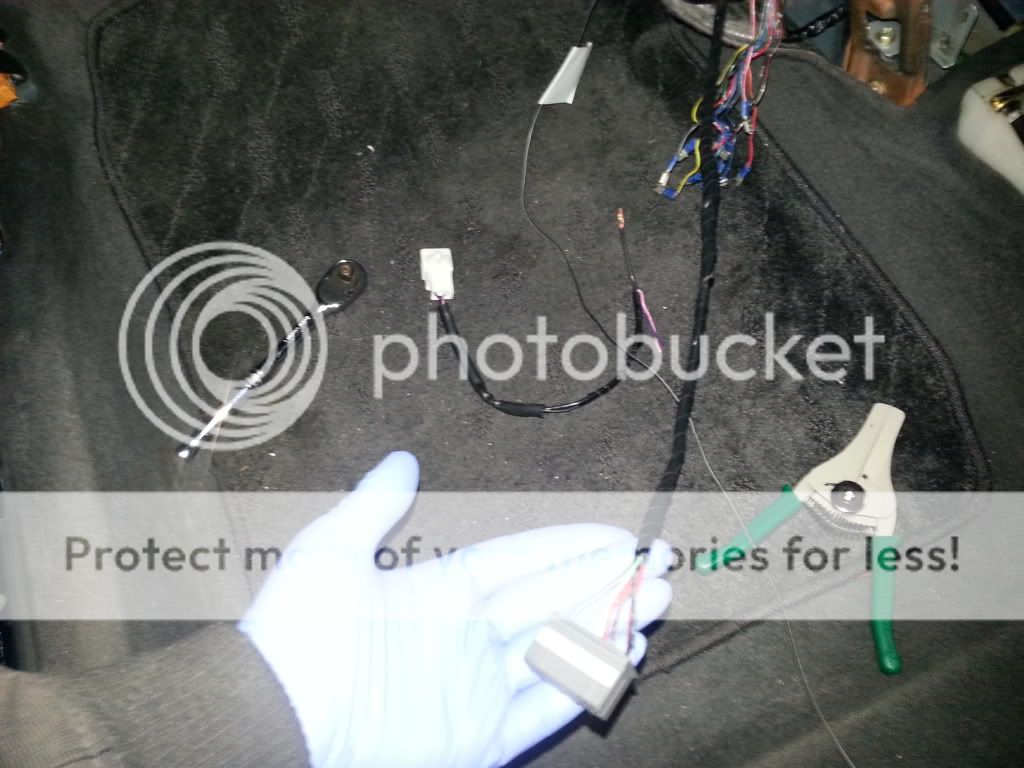

In the e10's the last ecu plug is part of the dash loom instead of just going straight
out to the fusebox on the e11's.So i had to make the third plug of my blacktop ecu
part of the corolla cabin loom.




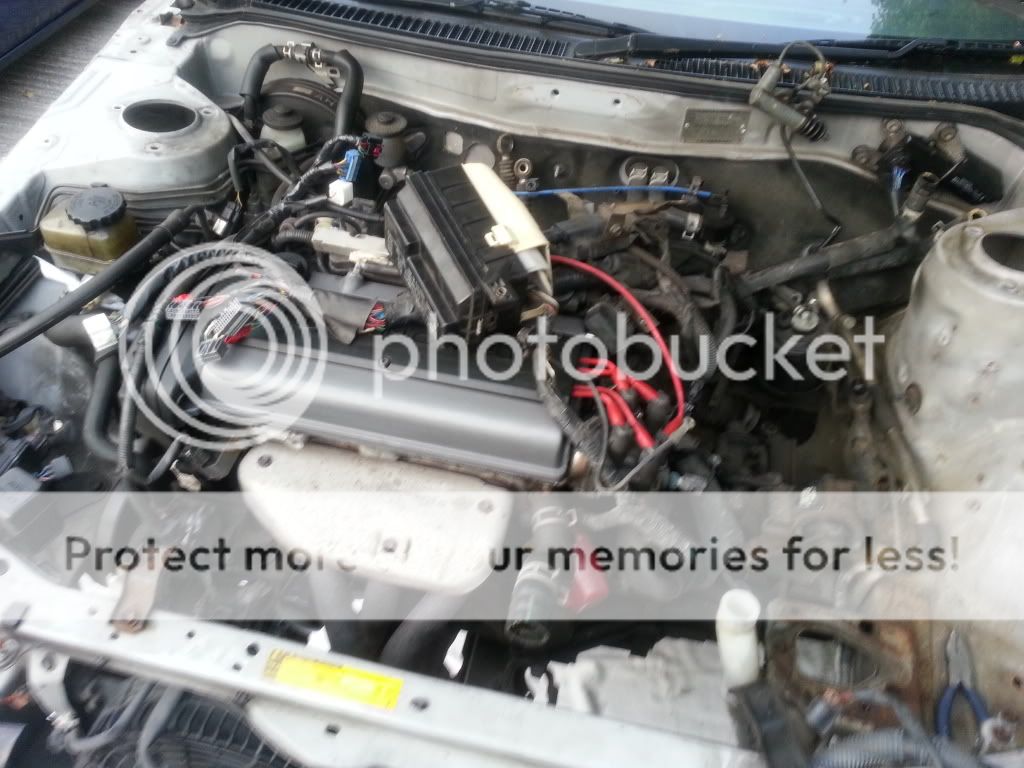

So just sat the engine in on the two subframe mounts and plugged in the loom lastnight.


Dash lights,head lights and all body related electrics are working.


I couldn't start the car as i had no oil and nothing else was hooked up.I will check over everything with the multimeter first and go through it top to bottom before i plug in the ecu and try to start it.When the car has been running fine for two or three days i will the the loom back out and sleeve it properly.

Thats as far as i have gotten for now anyway so will prob be sunday till i get near it again.
Anyway thanks for looking lads Smile


Last edited by Gafferz on Thu Jan 30, 2014 11:27 am; edited 1 time in total
Back to top Go down
SuperSlowrolla
New Member
New Member


Posts : 40
Reputation : 1
Join date : 2013-02-07

PostSubject: Re: My 8k8 blue ee101   Thu Jan 30, 2014 10:46 am

Wanna sell me your rear garnish??? I want that one so bad.
Back to top Go down
Gafferz
New Member
New Member


Posts : 24
Reputation : 0
Join date : 2013-02-01

PostSubject: Re: My 8k8 blue ee101   Thu Jan 30, 2014 11:00 am

Sorry man i sold it ages ago.
Back to top Go down
gold94corolla
Site Administrator
Site Administrator
avatar

Posts : 5263
Reputation : 181
Join date : 2011-04-29
Age : 30
Location : Maryland, USA

PostSubject: Re: My 8k8 blue ee101   Thu Jan 30, 2014 11:32 am

Nice update!
