PostSubject: Undercoating Help & Advice   Mon Aug 27, 2012 2:43 am

I would like to undercoat my car before this winter. My main goal is to hide the current rust that is visible, but I am also looking to slow it from rusting more and to protect it from winter salt.

I do not want to use any aerosol/spraying products to reduce overspray.

So far, my plan is to use a wire brush and sand paper to clean up any areas needed to be undercoated. Obviously there will be areas which will be impossible to sand out all of the rust completely, so I will just do the best I can. Then I have a product called Rust Converter from RustCheck (which converts rust into a paintable primed surface). Not sure if I should use it though, or if I should look for something which is more meant for heavier rust and undercoating. Basically, I am looking for something to treat the rust before undercoating.

Then once the rust is treated, I will apply my undercoating product. The stuff I am looking at is called Black Asphalt Undercoating with Rubber from Canadiantire. I actually read the only 2 reviews on the product, the first from a Corolla owner and the second from a large cargo van. Both claimed it was good stuff, the corolla review said it had lasted 2 years and still looks great and the cargo van said there was lots left over so it must be a good sized can for $29.99.

Anybody have any experience with doing this? any advice or suggestions on rust treating products or methods?

_________________
Back to top Go down
Corolla Sound
Supreme Member!
Supreme Member!
avatar

Posts : 1106
Reputation : 14
Join date : 2012-02-05
Age : 31
Location : Ontario, Canada

PostSubject: Re: Undercoating Help & Advice   Mon Aug 27, 2012 2:54 am

I think I will try the RustKiller from Rustcheck instead of the Rustconverter. It says its for heavier applications.

I also plan on doing this without removing anything which is going to make undercoating my front sub frame awfully difficult with the exhaust resting on it, well; without making a mess lol

_________________
Back to top Go down
SHEHROZE ARAIN
Pakistan Rep
Pakistan Rep
avatar

Posts : 1802
Reputation : 58
Join date : 2011-12-08
Age : 23
Location : HYDERABAD

PostSubject: Re: Undercoating Help & Advice   Mon Aug 27, 2012 3:39 am

bo what we do here to old classic cars is that we first remove the surface rust and pain the under carriage black and put rubber type asphalt compound from inside on the floor.it reduces the chances of rusting and decrases alot of road noise too.but this is for areas which are less humid and for the outside body holes and metal chipping we just cut and weld another metal piece and repaint it its really worth it in the long run.

_________________
Back to top Go down
gold94corolla
Site Administrator
Site Administrator
avatar

Posts : 5263
Reputation : 181
Join date : 2011-04-29
Age : 30
Location : Maryland, USA

PostSubject: Re: Undercoating Help & Advice   Mon Aug 27, 2012 5:29 am

Yeah, it adds weight, but it does reduce road noise and rust.

_________________

Back to top Go down
Corolla Sound
Supreme Member!
Supreme Member!
avatar

Posts : 1106
Reputation : 14
Join date : 2012-02-05
Age : 31
Location : Ontario, Canada

PostSubject: Re: Undercoating Help & Advice   Mon Aug 27, 2012 5:48 am

Oh yea, I forgot that it will add weight.

I also forgot to mention that I will need to clean and degrease the metal and free it from any moisture before I apply the undercoating.

I bought a small can of undercoating already but I still need some degreaser, preferably something fast drying that wont have to be wiped off. any suggestions? I usually use varsol but it needs to be wiped off after

_________________
Back to top Go down
gold94corolla
Site Administrator
Site Administrator
avatar

Posts : 5263
Reputation : 181
Join date : 2011-04-29
Age : 30
Location : Maryland, USA

PostSubject: Re: Undercoating Help & Advice   Mon Aug 27, 2012 6:18 am

I'd look at engine degreasers, you spray it on and rinse it off.

_________________

Back to top Go down
Corolla Sound
Supreme Member!
Supreme Member!
avatar

Posts : 1106
Reputation : 14
Join date : 2012-02-05
Age : 31
Location : Ontario, Canada

PostSubject: Re: Undercoating Help & Advice   Mon Aug 27, 2012 2:14 pm

Thanks again. I dont want to have to rinse it off though. I think Ill try a cleaner and degreaser from Duplicolour. I will post back later when I start making some progress

_________________
Back to top Go down
MirrorEyes
Canada Rep
Canada Rep
avatar

Posts : 1556
Reputation : 43
Join date : 2011-09-26
Age : 22
Location : Ontario, Canada

PostSubject: Re: Undercoating Help & Advice   Mon Aug 27, 2012 3:29 pm

Excellent, keep us updated, I too was looking at doing this to my car. Woulda been good for the Canadian winters eh ;P

_________________

Facebook
Back to top Go down
Corolla Sound
Supreme Member!
Supreme Member!
avatar

Posts : 1106
Reputation : 14
Join date : 2012-02-05
Age : 31
Location : Ontario, Canada

PostSubject: Re: Undercoating Help & Advice   Wed Aug 29, 2012 8:24 am

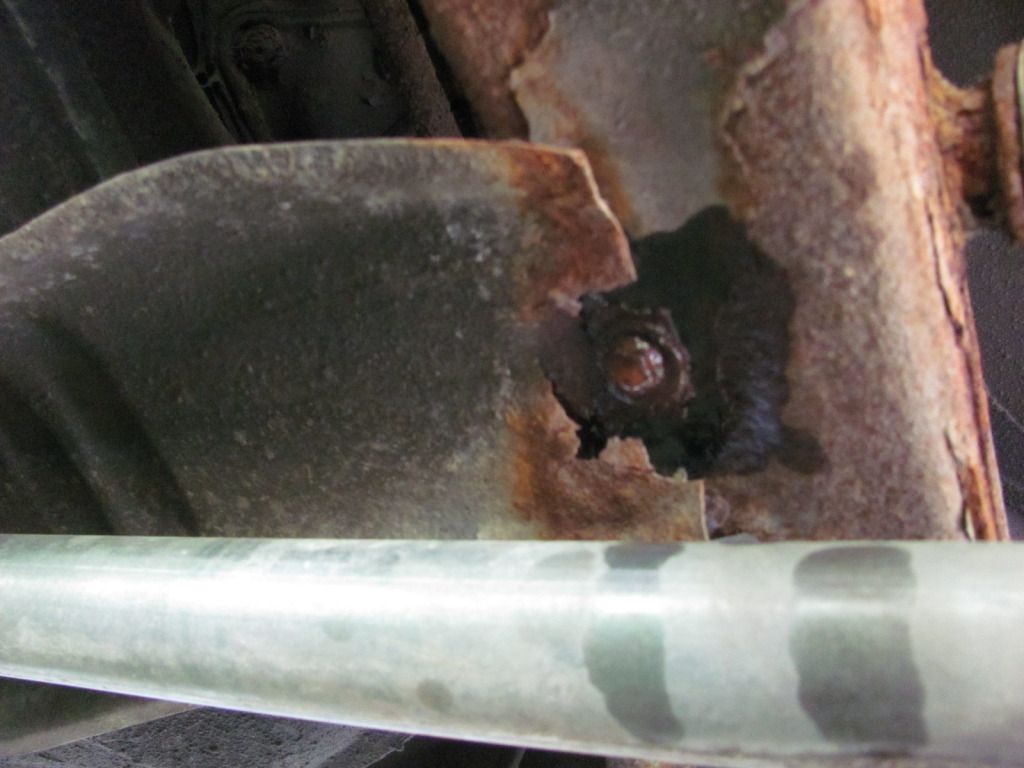

I had planned to start prepping some of the undercarriage but ended up spending all day looking for supplies to make a simple bracket. My exhaust heatshield was rusting at the back and ready to snap off and start rattling off the pipe.

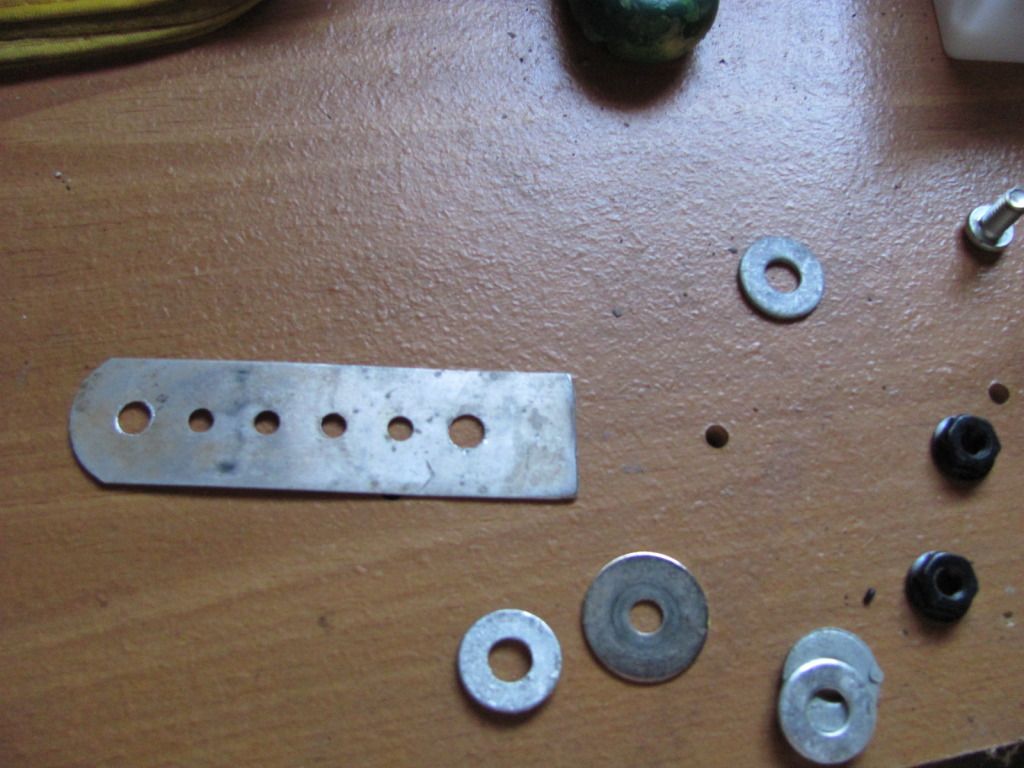

So after many applications of pb blaster I was able to loosen off the bolt holding up the heatshield so I can replace it with this bracket I made:

Gave it a quick shot of primer and black paint:

Just waiting for it to dry so I can pop it on.


_________________
Back to top Go down
Corolla Sound
Supreme Member!
Supreme Member!
avatar

Posts : 1106
Reputation : 14
Join date : 2012-02-05
Age : 31
Location : Ontario, Canada

PostSubject: Re: Undercoating Help & Advice   Thu Aug 30, 2012 6:15 am

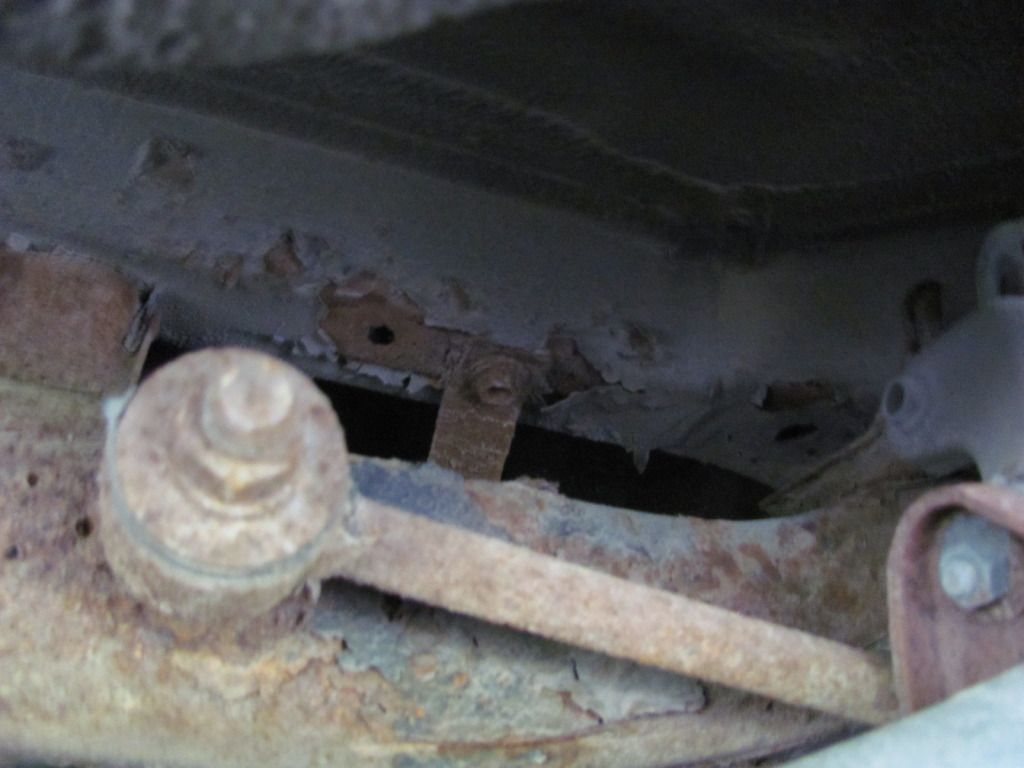

There, its sturdy as a rock now!

Now I can get back to business. I bought some TSP to start cleaning and degreasing the bottom.

Will TSP remove the old undercoating, or will it just take off the dirt and grease? I dont want to remove the old undercoating. Its still holding up pretty good in most spots



Its just mainly starting to rust where things are attached to the floor, the floor itself is in perfect condition so Im just gonna leave the existing undercoat alone.

_________________
Back to top Go down
SHEHROZE ARAIN
Pakistan Rep
Pakistan Rep
avatar

Posts : 1802
Reputation : 58
Join date : 2011-12-08
Age : 23
Location : HYDERABAD

PostSubject: Re: Undercoating Help & Advice   Thu Aug 30, 2012 7:21 pm

i would suggest u to remove your seats and carpet to check your floor and arches from inside of the car also.
